Custom Augers
         whatsnew                                                         returntohomepage



Here's our new FERTILIZER CROSS AUGER for the JOHN DEERE 1745 PLANTER. The 12" drops allow the fertilizer to fill each of the hopper's three openings.





Introducing our 8" DIAMETER FERTILIZER CROSS AUGERS. Less down time filling means more time actually planting. Available for 6, 8, 12 & 16 row planters.

     6” AUGER CAPACITIES:

FERTILIZER………….……1,000 LBS. PER MINUTE

      8” AUGER CAPACITIES:

 FERTILIZER………….……1,700 LBS. PER MINUTE

*RATES MAY DIFFER DUE TO QUALITY OF MATERIAL, UNLOADING ANGLE  & HYDRAULIC

 OUTPUT.







18' SINGLE AUGER SEED-FILL FOR JOHN DEERE N540C AIR DRILL .

It takes 30 seconds to move the auger from transport position to a fill position. IMPORTANT FOR SAVING TIME DURING FILLINGS.

The lid is easily accessible with the auger in transport or filling position.

The lid is able to open with the auger in transport position. IMPORTANT FOR BEING ABLE TO CHECK SEED LEVELS.





18' SINGLE AUGER SEED-FILL FOR JOHN DEERE N530C AIR DRILL .

It takes 30 seconds to move the auger from transport position to a fill position. IMPORTANT FOR SAVING TIME DURING FILLINGS.

The lid is easily accessible with the auger in transport or filling position.

The lid is able to open with the auger in transport position. IMPORTANT FOR BEING ABLE TO CHECK SEED LEVELS.

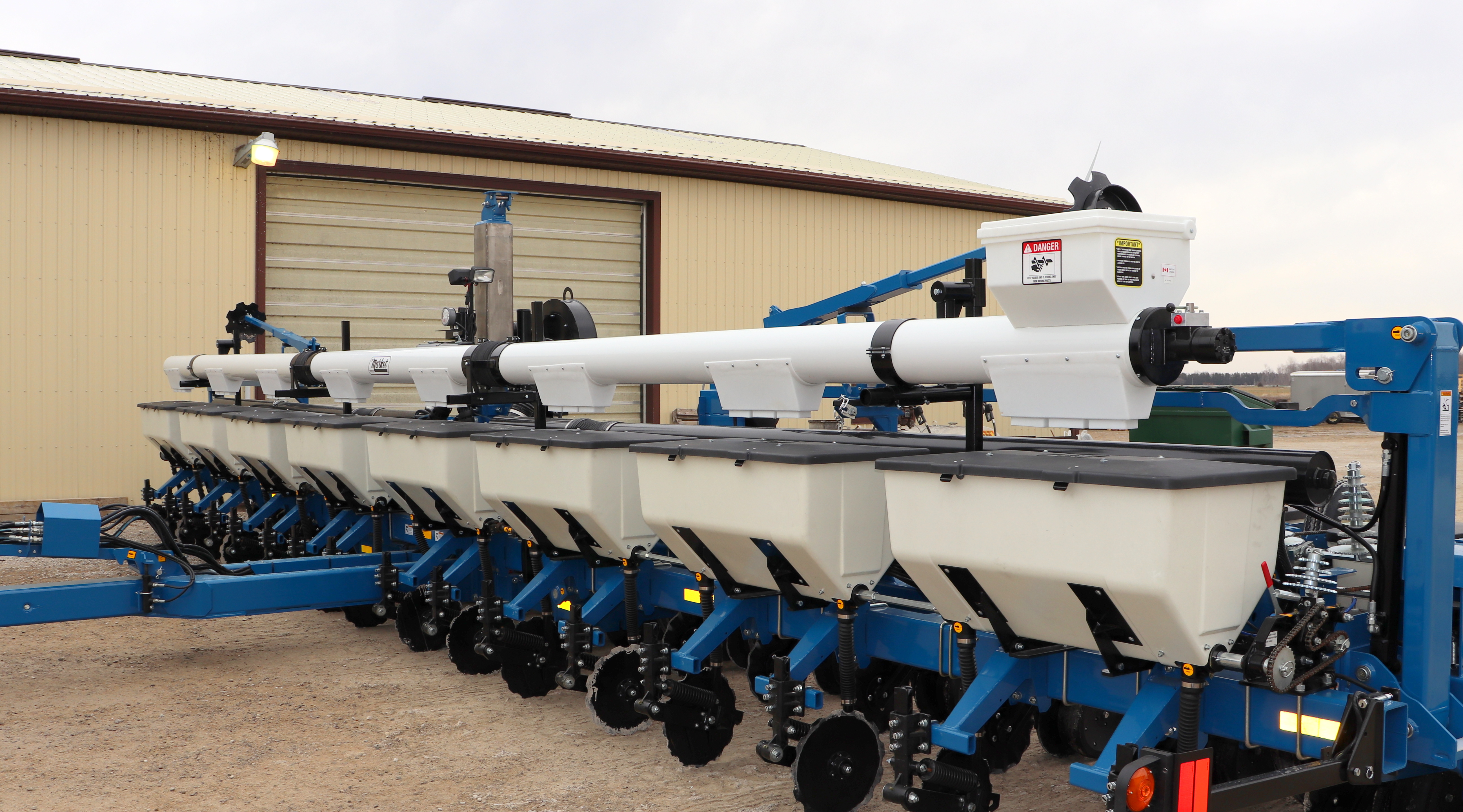

15' SINGLE AUGER SEED-FILL FOR KINZE 3500 ASD PLANTERS.

It takes 30 seconds to move the auger from transport position to a fill position. IMPORTANT FOR SAVING TIME DURING FILLINGS.

The lids are easily accessible with the auger in transport or filling position.

The lids are able to open with the auger in transport position. IMPORTANT FOR BEING ABLE TO CHECK SEED LEVELS.





Introducing our MARKET 8" PIVOT AUGER.

Available in 12' & 14' lengths.

The pan style hopper fits doors up to 48" wide.

Adjust to fit gravity boxes with either a straight or a sloped door side, simply by using the support turn buckles.

The unique design of this auger allows the spout to remaining pointing downward, unlike competitors augers that turn upwards as the auger is moved from side to side

T







Our MARKET 3 PT. HITCH ROLLERS are available in 4', 5', & 6' widths.

The 16" diameter heavy duty steel roller is equipped with 2 ports for either adding or draining water.

The corner legs keep the roller off the ground when not being used.

Ideal to use for rear weight to offset front end loader attachments.

Powder coated grey/black frame.







We now offer a FLAT RACK for our 2 TON UTILITY WAGONS. The front & rear racks are adjustable. Simply, pull the pin to change positions. We have also built a small rocking bolster into the front of the rack to allow for flexing on uneven ground. The FLAT RACK is 55" wide x 98" long x 27" high.





Optional UTILITY BOX with hinged split tailgate for our 2 TON UTILITY WAGON. Box & wagon dimensions are 37.5" tall x 50.5" wide x 74.5" long. Recycled plastic tongue & groove boards are fastened with countersunk stainless steel bolts & nuts.





SINGLE AUGER SEED-FILL FOR JD 1770 CCS PLANTERS.

A sub-frame allows the auger to be supported off the main frame rather than trying to attach it to the catwalk.

It takes 30 seconds to move the auger from transport position to a fill position. IMPORTANT FOR SAVING TIME DURING FILLINGS.

The lid’s are easily accessible with the auger in transport or filling position.

The lid is able to open with the auger in transport position. IMPORTANT FOR BEING ABLE TO CHECK SEED LEVELS.

By storing the auger down the center of the planter, it does not stick out into oncoming traffic.  IMPORTANT FOR SAFETY DURING TRANSPORT.



MARKET PLASTIC SEED CROSS AUGERS are time saving accessories which allow you to auger bulk seed quickly & easily into your planter.

All of our seed cross augers feature a heavy gauge PVC tube with polyethylene plastic hoppers & seed drops c/w shut-off slides.




Available in 6" diameter with cupped plastic flighting.

Every planter is different so we build the cross auger to suit your planter.  All we need is the center to center measurements of the planters seed hoppers.

Planter Cross Augers kits for seed include offset posts & cross arms. In some applications, sub-frames and/or modifications may be necessary to mount the hardware.







The MARKET HYDRAULIC FOLDING ROLLER is ideal for larger estates, sports fields & parks. The 13'6" working width gets the job done quick and the 8'9" folded width allows the roller to be transported & stored easily. This roller is equipped with floating wings to follow the contours of the terrain. A double selector valve allows you to raise/lower & fold/unfold with one set of tractor remotes.

The hydraulic lift wheels allow you to move the roller to the job without damage to the surrounding landscape.  The heavy duty 16" steel rollers are equipped with 2 filler ports for adding and draining water.

                 WEIGHT (filled with water)....3100 LBS.



20' CIH 500T DISK DRILL

30' NH 2085P DISK DRILL C/W SCALES

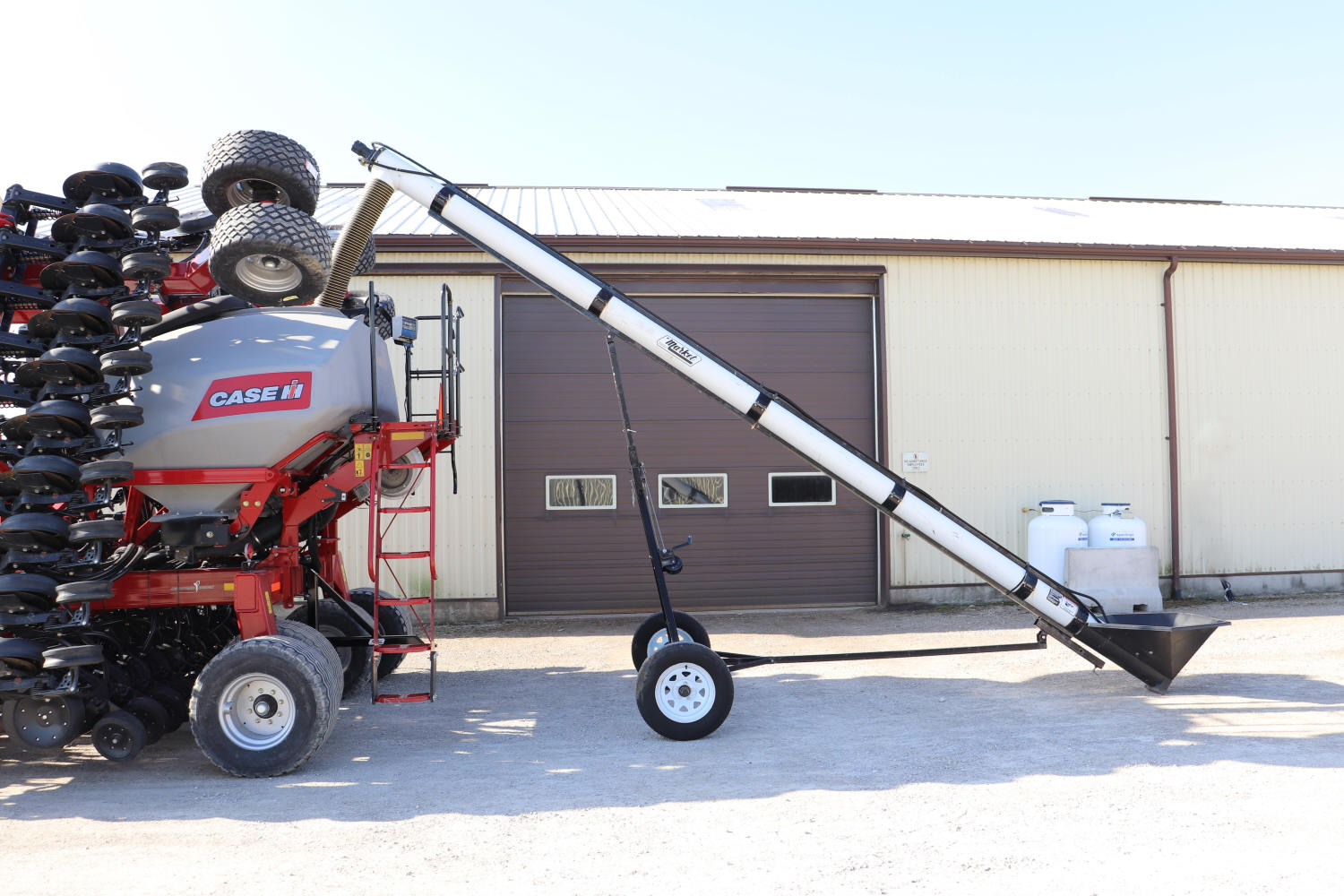

SINGLE AUGER SEED-FILL FOR CIH 500T & NEW HOLLAND 2080P/2085P DISK AIR DRILLS.

A sub-frame allows the auger to be supported off the main frame rather than trying to attach it to the catwalk.

It takes 30 seconds to move the auger from transport position to a fill position. IMPORTANT FOR SAVING TIME DURING FILLINGS.

The lid’s latches are easily accessible with the auger in transport or filling position.

The lid is able to open with the auger in transport position. IMPORTANT FOR BEING ABLE TO CHECK SEED LEVELS.

The auger height in transport position is 13’. This is the same overall transport height as a 30’ unit (without an auger). IMPORTANT FOR TRANSPORTING & STORAGE.

By storing the auger down the centre, it does not stick out in traffic. It maintains the overall transport width of the air drill. IMPORTANT FOR SAFETY DURING TRANSPORT.

The hopper has 48” of ground clearance when in transport position.







Market Farm Equipment Ltd. reserves the right to make improvements to design or changes in specifications at any time without notice or obligation.
